Specifo
# | Ero | Parametro | Rimarku | ||
1 | Nominala Kapablo | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2V | |||
3 | AC Impedance Resistance(1KHz) | ≤0,5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | Ŝarĝa temperaturo | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | Malŝarĝa temperaturo | -20°C~55°C | |||
9 | Stokadotemperaturo | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35 ° C | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
Dimensio | Larĝo | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36,7 ± 0,5 mm | |||
14 | High( Total) | 200,5 ± 0,5 mm | |||
15 | High( Subject) | 195,5 ± 0,5 mm | |||
16 | Tabs Distance | 67,0 ± 1,0mm | |||
17 | Kuirilaro Pezo | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
Apliko
Nia Fabriko

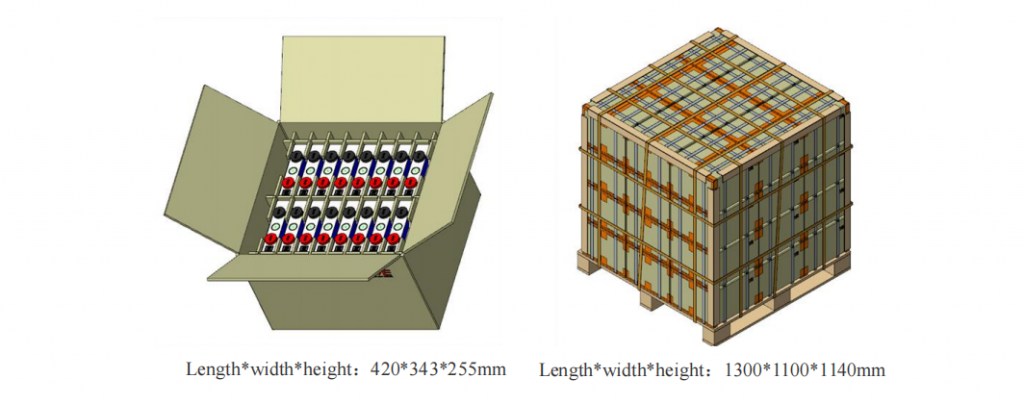

Pakado Kaj Sendado
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
Stokado
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
Oftaj Demandoj
Q1. Ĉu mi povas havi ekzemplan mendon?
A. Jes, ni bonvenigas specimenan ordon por testi kaj kontroli kvaliton.
Q2. Kio pri la plumbo?
A. Specimeno bezonas 3 tagojn, amasproduktado bezonas 5-7 semajnojn, ĝi dependas de manda kvanto.
Q3. Ĉu vi havas ajnan MOQ-limon?
A. Jes, ni havas MOQ por amasproduktado, tio dependas de la diversaj partnombroj. 1 ~ 10pcs specimeno ordo haveblas. Malalta MOQ, 1pc por ekzempla kontrolado estas havebla.
Q4. Kiel vi ekspedas la varojn kaj kiom da tempo daŭras por alveni?
A. Kutime necesas 5-7 tagoj por alveni. Flugkompanioj kaj mara sendado ankaŭ estas laŭvolaj.
Q5. Kiel procedi pri ordono?
A. Unue sciigu al ni viajn postulojn aŭ aplikon. Due, Ni citas laŭ viaj postuloj aŭ niaj sugestoj.Trie kliento konfirmas la specimenojn kaj metas deponejon por formala ordo. Kvara Ni aranĝas la produktadon.
Q6. Ĉu estas bone presi mian logoon sur la produkto?
A. Jes. Bonvolu informi nin formale antaŭ nia produktado kaj konfirmi la projekton unue surbaze de nia specimeno.
Q7.Kiom atestilojn vi havas?
R: Ni havas CE / FCC / ROHS / UN38.3 / MSDS ... ktp.
Q8.Kiel pri garantio?
A: 3-jara garantio
